HM-WK420 Automatic Collar Wrapping Machine product introduction

HM-WK420 Automatic Collar Wrapping Machine is an automatic equipment for
box collar and forming process. It is suitable to make various types of rigid box collars
in mass production, such as jewelry boxes, mobile phone boxes, gift boxes, cosmetic
boxes, watch boxes, etc. The maximum can be 400mmx300mmx150mm which covers
a larger range compared to the previous machines and meets better to the market's
requirements.
HM-WK420 adopts PLC and man-machine control, it can automatically feed cover
paper, glue paper, spot greyboard, flip greyboard, edge wrapping, fold in corner edges
and form collar.
The feeder, the gluer and the conveyor are driven by servo which has
continuously variable transmission and enjoy high accuracy, easy adjusting, and high
efficiency. Double color conveyor can avoid changing to other color belt, which is
Hongming' s patent. The spot unit adopts servo and electric eye to improve spotting
accuracy and efficiency. The forming unit employs THK Linear slider and virtual cam
driving system, guaranteeing the stable quality and fluent movement and enlarge the
folding-in depth and corner edges.

HM-WK420 Automatic Collar Wrapping Machine unit features and standard equipment

1. Suit to all kinds of rigid boxes collar mass production；
2. Auto error stop and display；
3. Automatic feed paper；
4. 24-hour glue timing heating function;
5. Adopts servo motor control system；
6. Hydraulic pressure function；

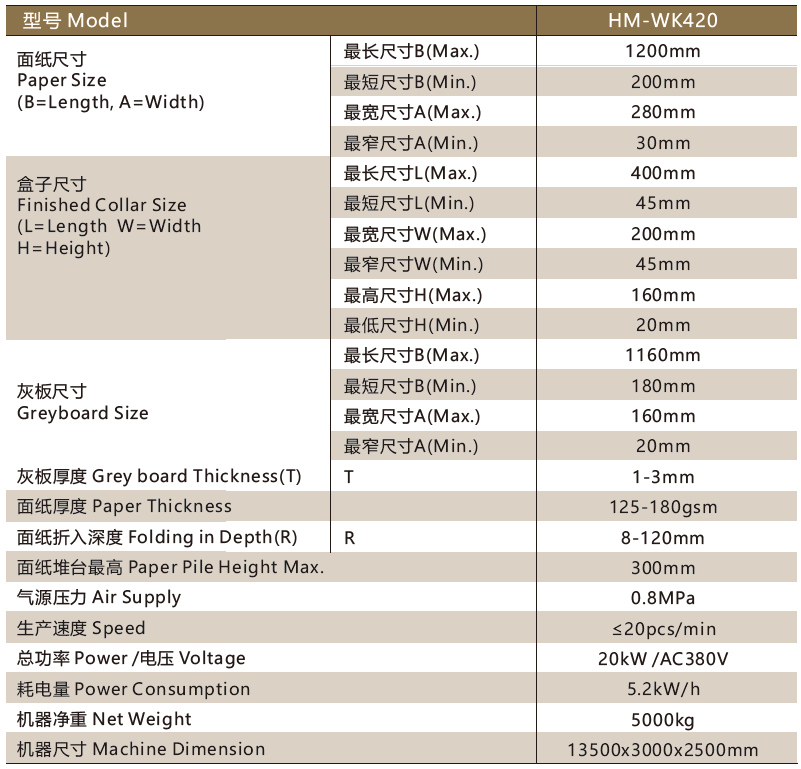

The main technical parameters of HM-WK420 Automatic Collar Wrapping Machine

Note:

1、The Finished Box Max. sizes are determined by paper size.
2、The production speed of the rigid box machine is determined by the box size,
the paper and the greyboard materials.
3、Seller doesn't provide air compressor.
(8atm=0.808MPa, 7.5kW compressor is needed)
