HM-3525 Greyboard Assembling Machine is specially for rigid boxes’ greyboard assembling. Its main purpose is to save the greyboard loss and make the rigid box making industrial environmentally friendly.
Features and function:

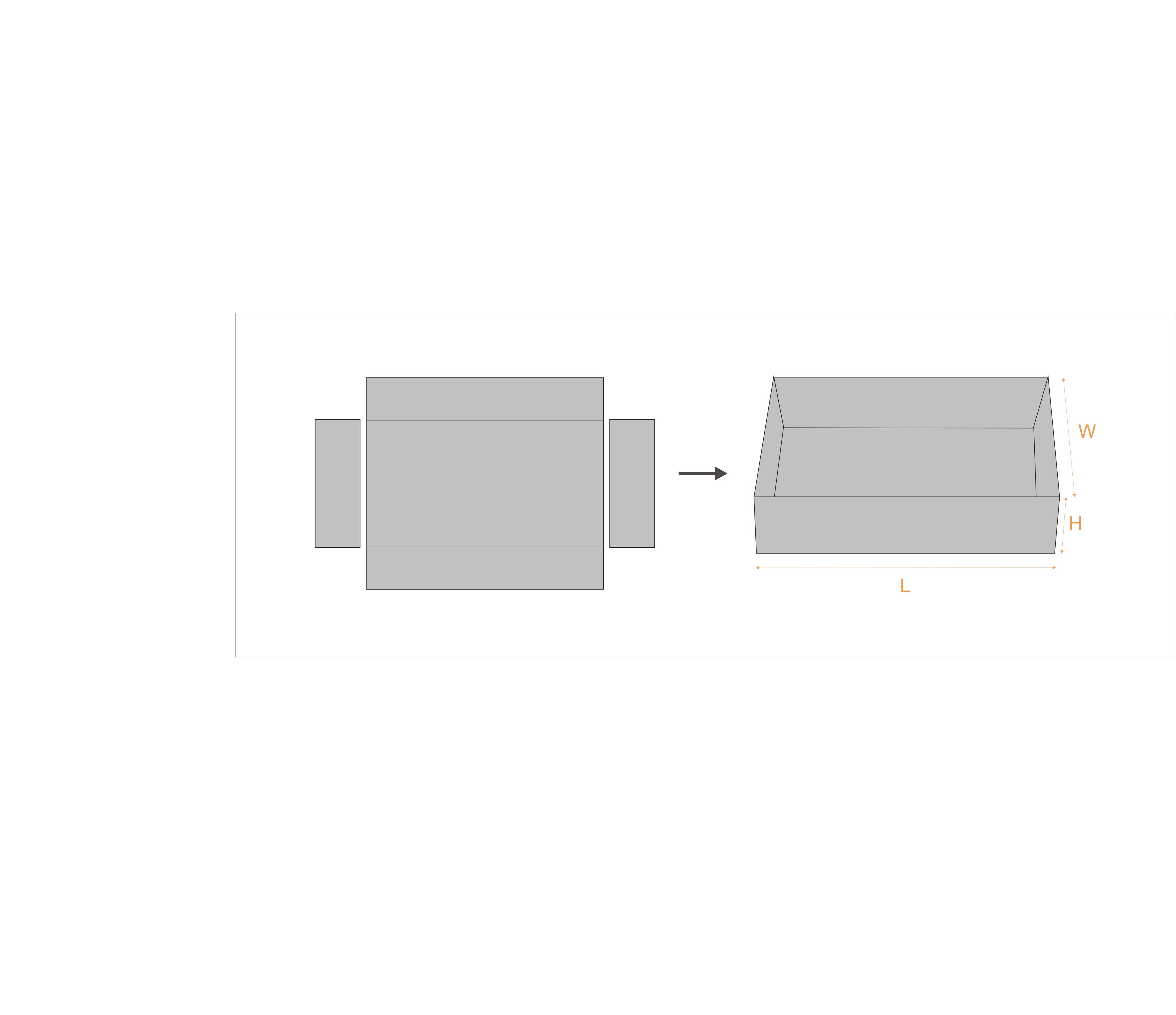

1.Two side boards attaching to the triple board, greatly decreases the greyboard material loss.
2.The glue spray can output even glue between the attaches, without lack glue or leaking glue.
3.Glue thickness can be adjusted.
4.Spot is highly accurate within 0.2mm.
5.Adopt Omron PLC to control the machine, simple Interface, easy operation, and every unit can be independently adjusted.
Technical Parameters
Model | HM-3525 | |
Box size L=length | L (Max.) | 350mm |
L (Min.) | 100mm | |
W(Max.) | 250mm | |
W (Min.) | 70mm | |
H(Max.) | 150mm | |
H (Min.) | 20mm | |
Speed | 20-30pcs/min | |
Machine Power | 7kW | |
Voltage | AC380V | |
Glue Type | Hot-melt Glue | |
Glue Tank Volume | 6L | |
Air Supply | 300L/min, 0.8MPa | |
Net Weight | 1200kg | |
Machine Dimension | 2100x2300x2100mm | |
